GXT 255+ Onyx

1. Assemble the microphone and set it in your preferred position

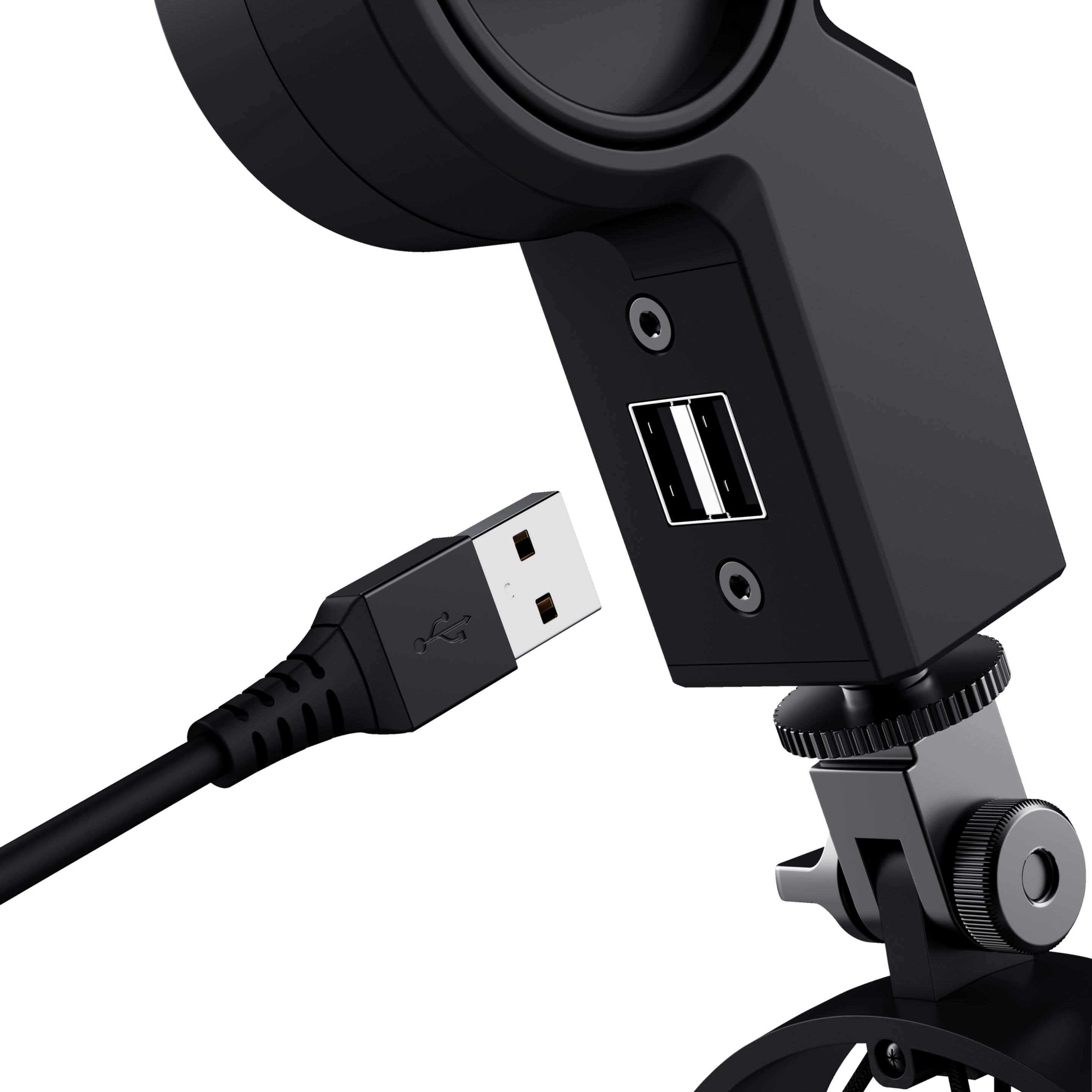

2. Connect the USB-plug to the USB-connection of the computer
3. Set the microphone as the default sound input and the speaker as the default sound output device on the computer.
4. Check the microphone properties and on Windows 10 the Microphone Privacy settings.
5. The microphone is ready to use

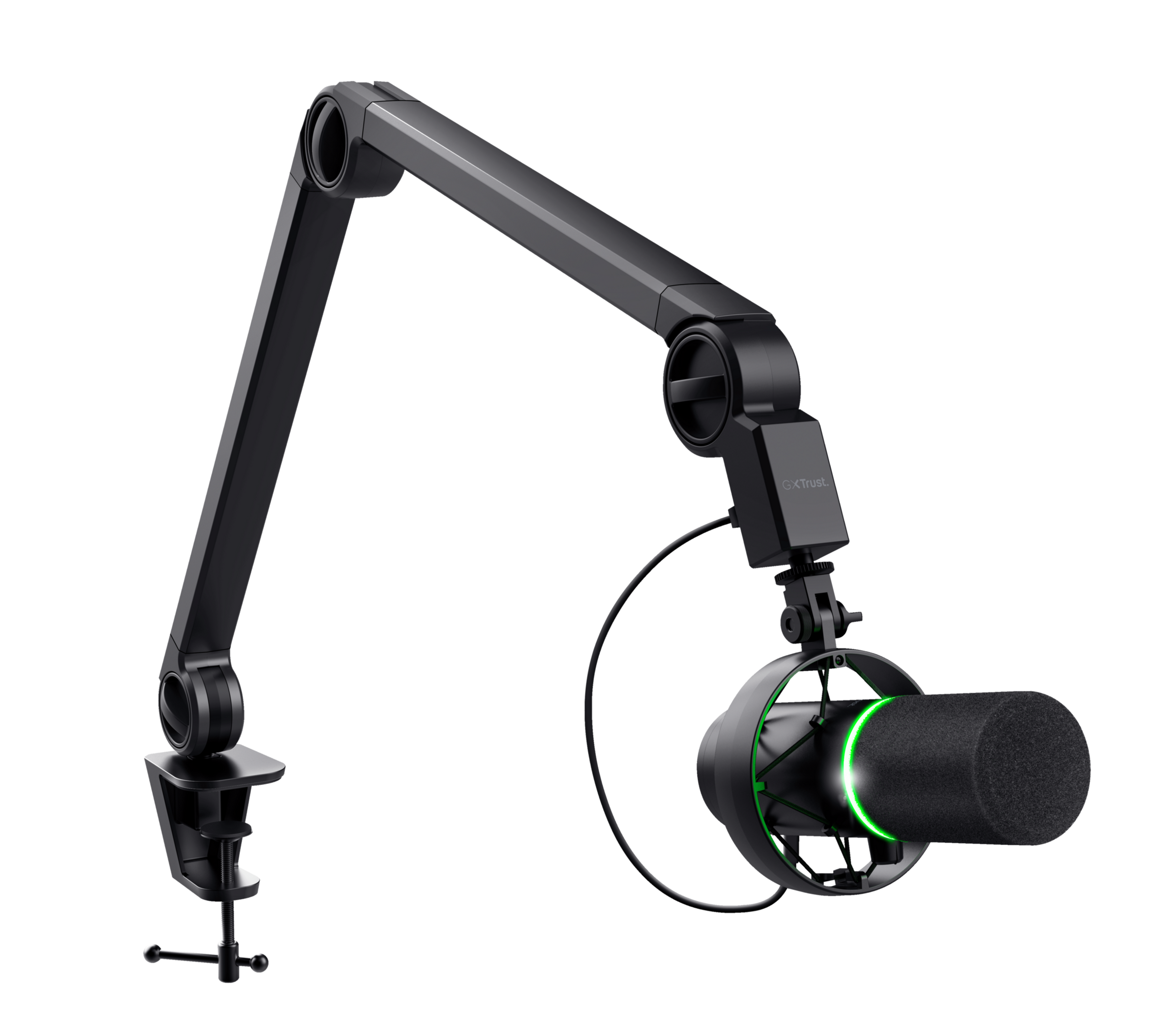

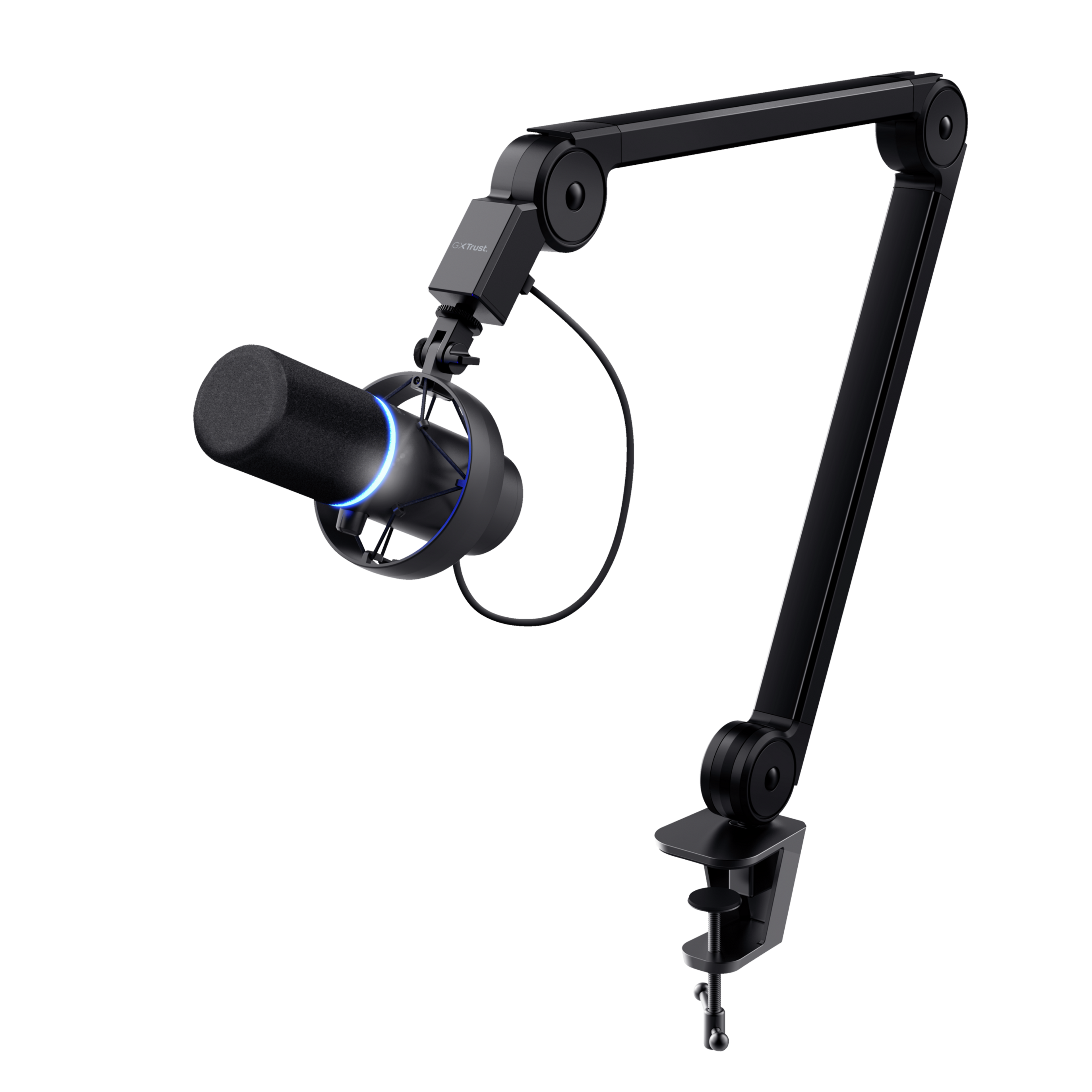

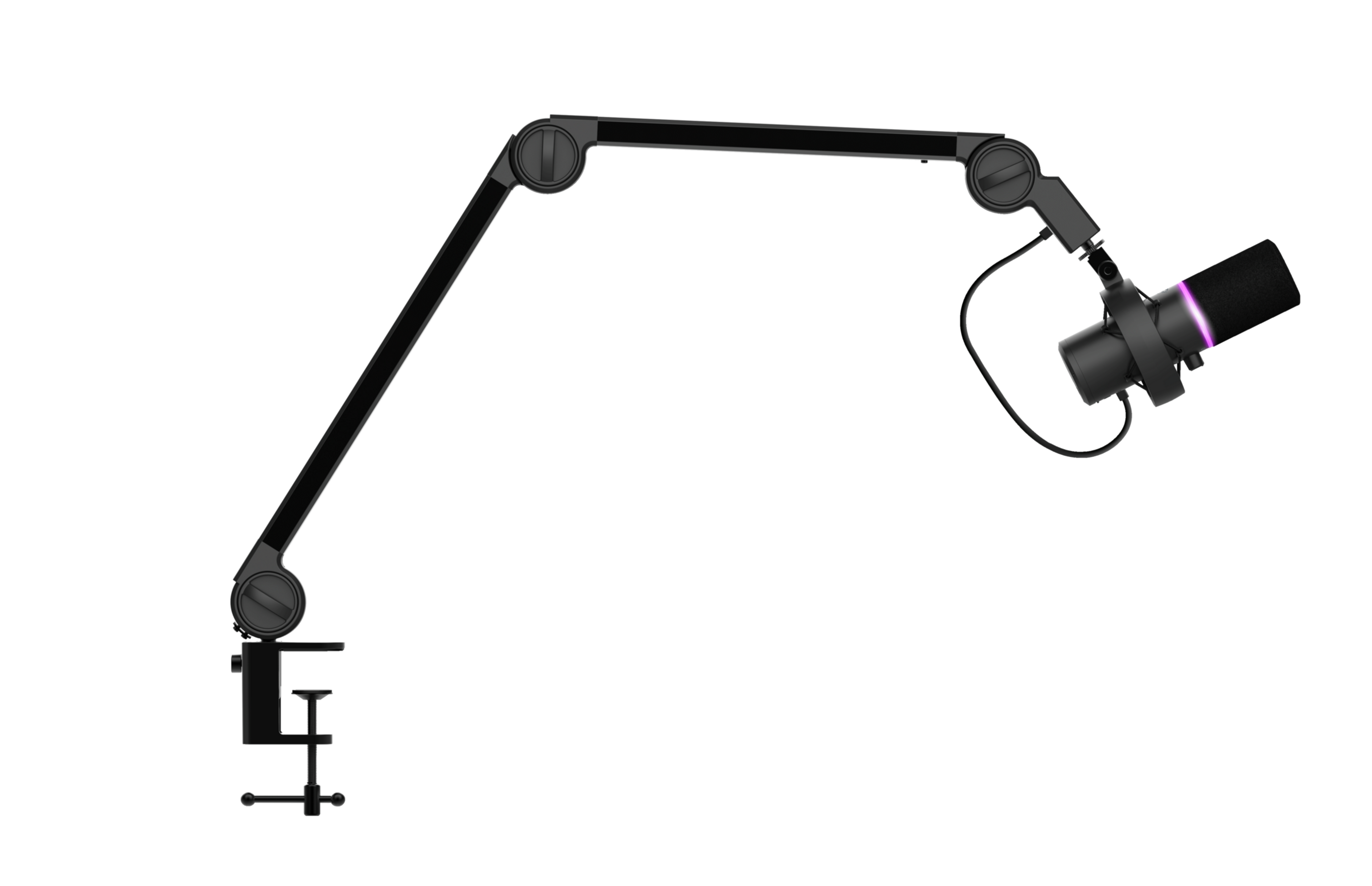

The microphone arm is suitable for desks with up to 4.8 cm thickness.

The maximum table thickness should not be higher than 45mm.

By long-pressing (4 seconds) the button on the bottom of the mic, you switch on/off the light. By clicking the same button you start/stop the color cycle.

You switch on/off the microphone by pressing the microphone volume button on the front.

If you want the music to be loud, but the monitor volume low, you turn the volume button on the microphone high, and keep the volume in the playback/mic levels low.

There are 5 volume options via this microphone

• 2 buttons on the microphone:
  mic volume
  headset/speaker volume
• 3 options in Windows:
  Sound Control Panel > Playback > click on device > Properties > Levels > Speakers/Headphones
  Sound Control Panel > Recording > click on device > Properties > Levels > Microphone Array
  Sound Control Panel > Recording > click on device > Properties > Levels > Microphone Boost

Check both the headset volume on the computer, as well as the headset volume on the microphone itself. The headset volume button is located on the front of the microphone, right above the headset connection.

Check both the microphone volume on the computer, as well as the microphone volume on the microphone. The microphone volume button is located on the front of the microphone, right above the headset volume button.

The standard microphone volume in Windows is 2.0 dB, which should be sufficient for most purposes.

The red light indicates that the mic mute function has been activated.

When mute is activated, the buttons will not function.

Infelizmente, não temos centros de serviço para consertar produtos.
Um produto com defeito deve ser substituído no ponto de venda durante o período de garantia.

Oferecemos uma garantia de 'devolução ao revendedor' para nossos produtos. Em caso de defeito, você pode devolver o produto ao revendedor com a descrição da falha, comprovante de compra e todos os acessórios. Durante o período de garantia, você receberá um produto de substituição do varejista, se disponível. Para todas as condições de garantia, você pode consultar: https://www.trust.com/support/warranty

The pick-up pattern of a microphone is the sensitivity to sound relative to the direction or angle from which the sound arrives, or how well the microphone "picks up" the sound from different directions. The most common types are: Cardioid, Omnidirectional, Unidirectional, Bidirectional.

CARDIOID
The most commonly used pattern is most sensitive at 0° (the front) and least sensitive at 180° (the back). This isolates it from unwanted ambient sound. You can use this for most recording applications. It is easy to get a good signal as the cardioid pattern blends out a bad sounding room, a noisy fan in the background, etc.

OMNIDIRECTIONAL
The omnidirectional microphone has equal sensitivity at all angles. This means it picks up sound evenly from all directions. Therefore, the microphone need not be aimed in a certain direction. It will be especially useful in good sounding rooms.

UNIDIRECTIONAL
Unidirectional microphones are most sensitive to sound arriving from directly in front (at 0°) and less sensitive in other directions. This makes unidirectional microphones effective at isolating the desired sound from both unwanted sound and ambient noise.

BIDIRECTIONAL
A bidirectional microphone (with figure-8 pattern) picks up the sound from in front of the microphone (at 0°) and from the rear (at 180°), but not the side (at 90° and 270°). It can be beneficial in situations where you do not want a signal coming from a 90° angle to bleed into the microphone.
